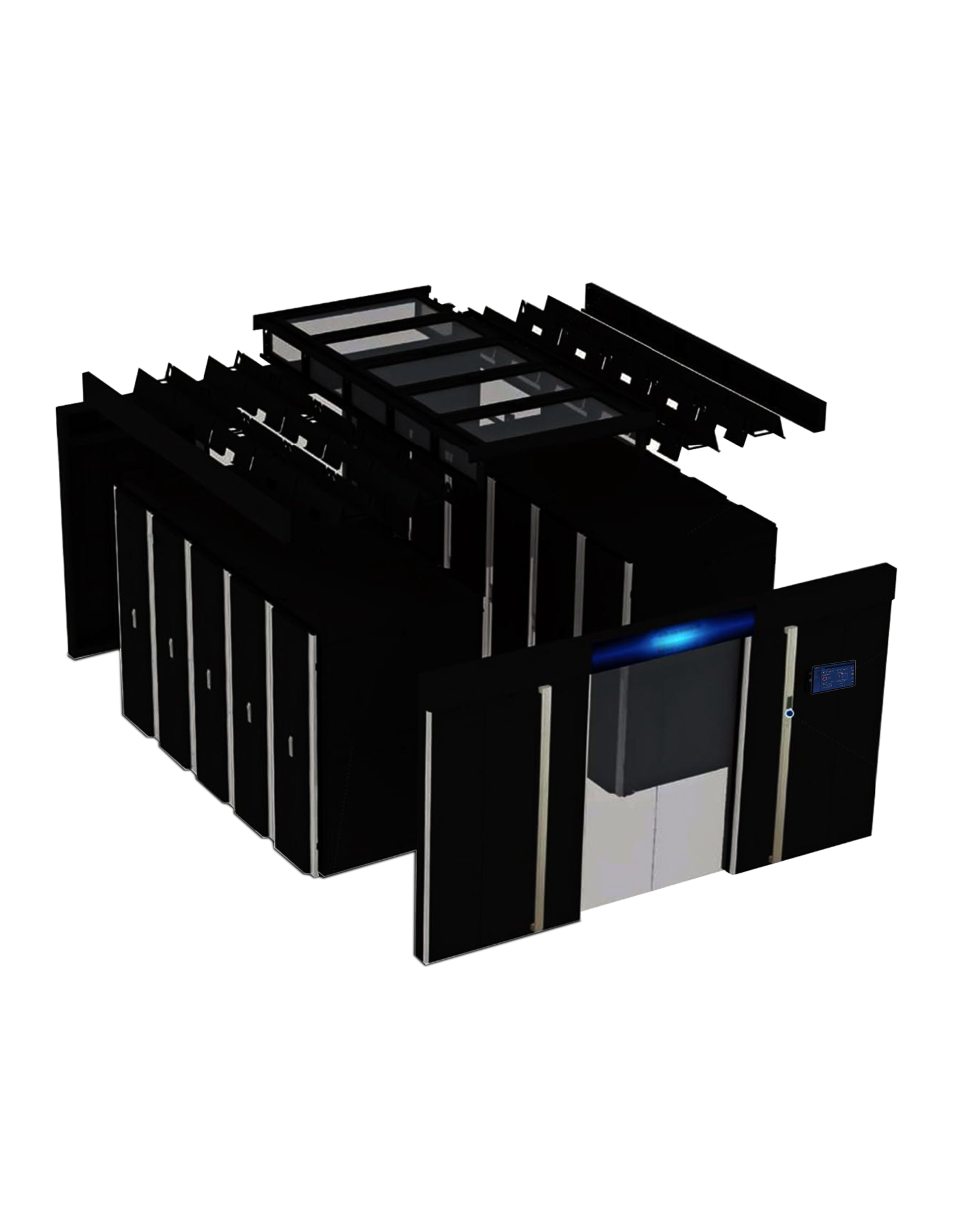

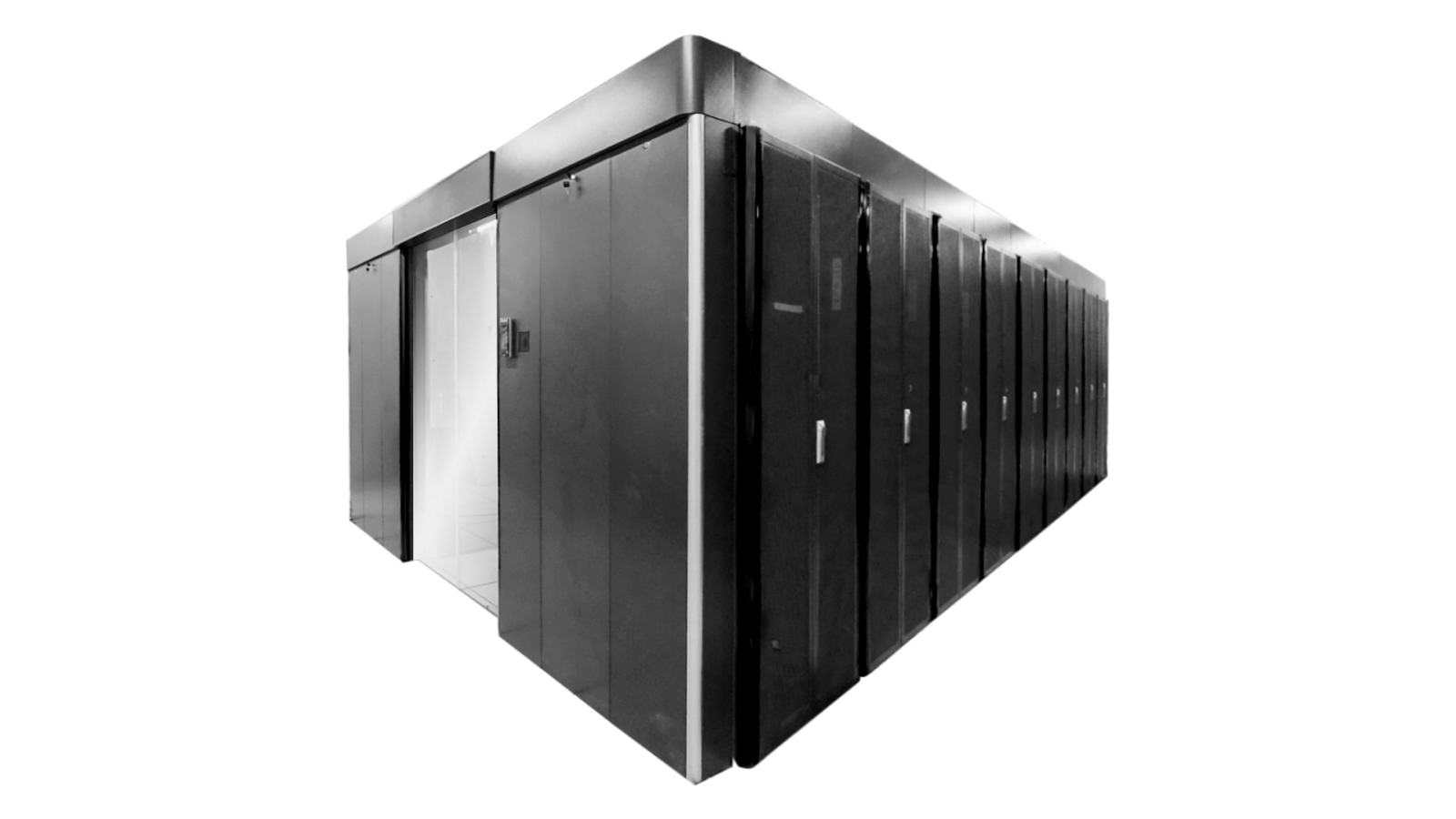

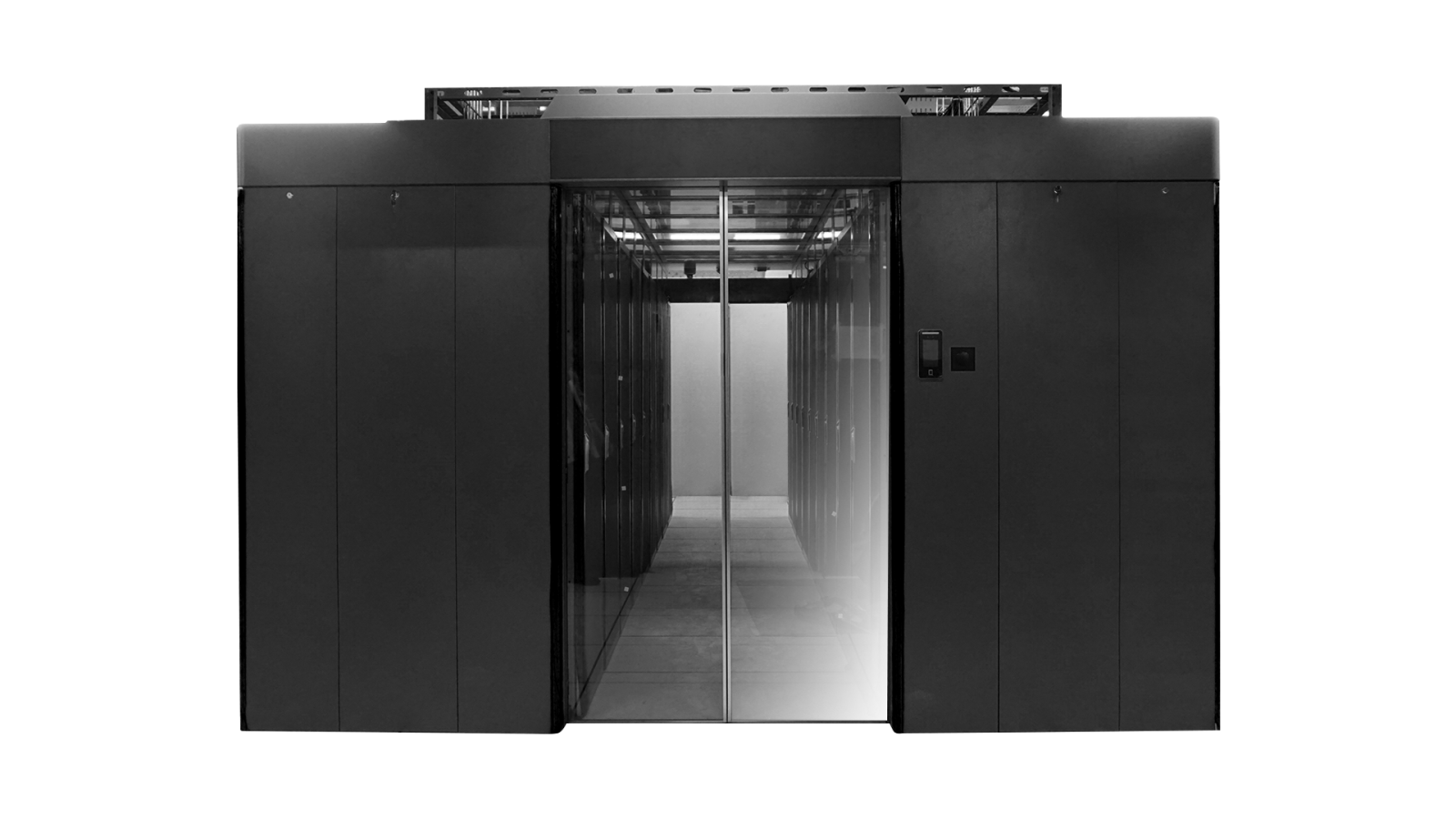

DTC Cold Aisle Containment System with Bisoft DCIM

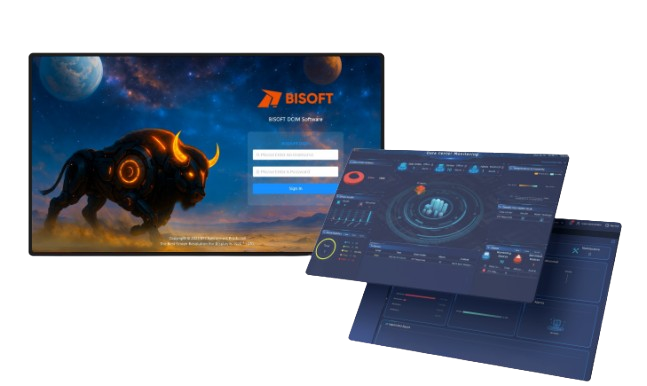

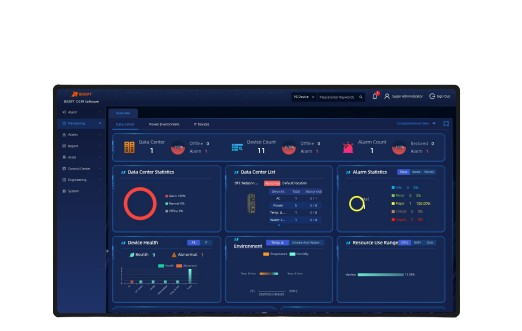

DCIM System is a dynamic environment monitoring and centralized control system developed for modular data centers. It realizes data center infrastructure and environment through technologies such as telemetry, remote signaling, remote control, and remote adjustment. Full-parameter, all-around monitoring, and management providing multi-terminal human-machine interfaces such as local end, remote browser, mobile APP, etc., realize sun-attended data centers, improve user maintenance and management efficiency, and reduce user operation costs.

Developed in compiled language, based on Ubuntu system, portable to multiple operating systems based on X86 and ARM architecture

Distributed architecture design, applying HTML5 + Websocket technology, to achieve centralized control and remote management of multiple sets of dynamic ring monitoring systems

Design of full asynchronous communication mode microservice architecture based on message queue. Monitoring data is stored in real-time based on time series data, facilitating daily operation and maintenance upgrades.

Support temperature and humidity, water immersion, smoke, air conditioning, power distribution, UPS, access control, video and other monitoring management, and third-party device interface customization.

Support multiple alarms such as sound and light, SMS, and email, and Support interconnection of multiple SMS alarm devices. Supports multiple SIM card redundant configurations, and Achieve high availability of the alarm system.

Support cross-network segment actively pushes device monitoring data to the centralized monitoring center, which can be remotely accessed through WEB and APP, and supports Apple and Android phones.

Support the configuration of the dynamic ring to monitor the physical server or virtual machine centrally, can configure multiple embedded dynamic ring monitoring hosts, and optional 9.7-inch industrial touch screen.

The system can open the standard northbound interface SNMP protocol to provide a third-party system.

Size = 600*1200*2000 (mm)

Standard 19", Capacity 42U

Static Loading up to 2000 kg

Port Network

Connect the switch to provide web services.

Port Data

Alternate port.

Port 485 Device

This device is used to connect temperature and humidity, air conditioner, etc.

Switch Input

Used to connect switch equipment such as smoke detectors and infrared detectors.
