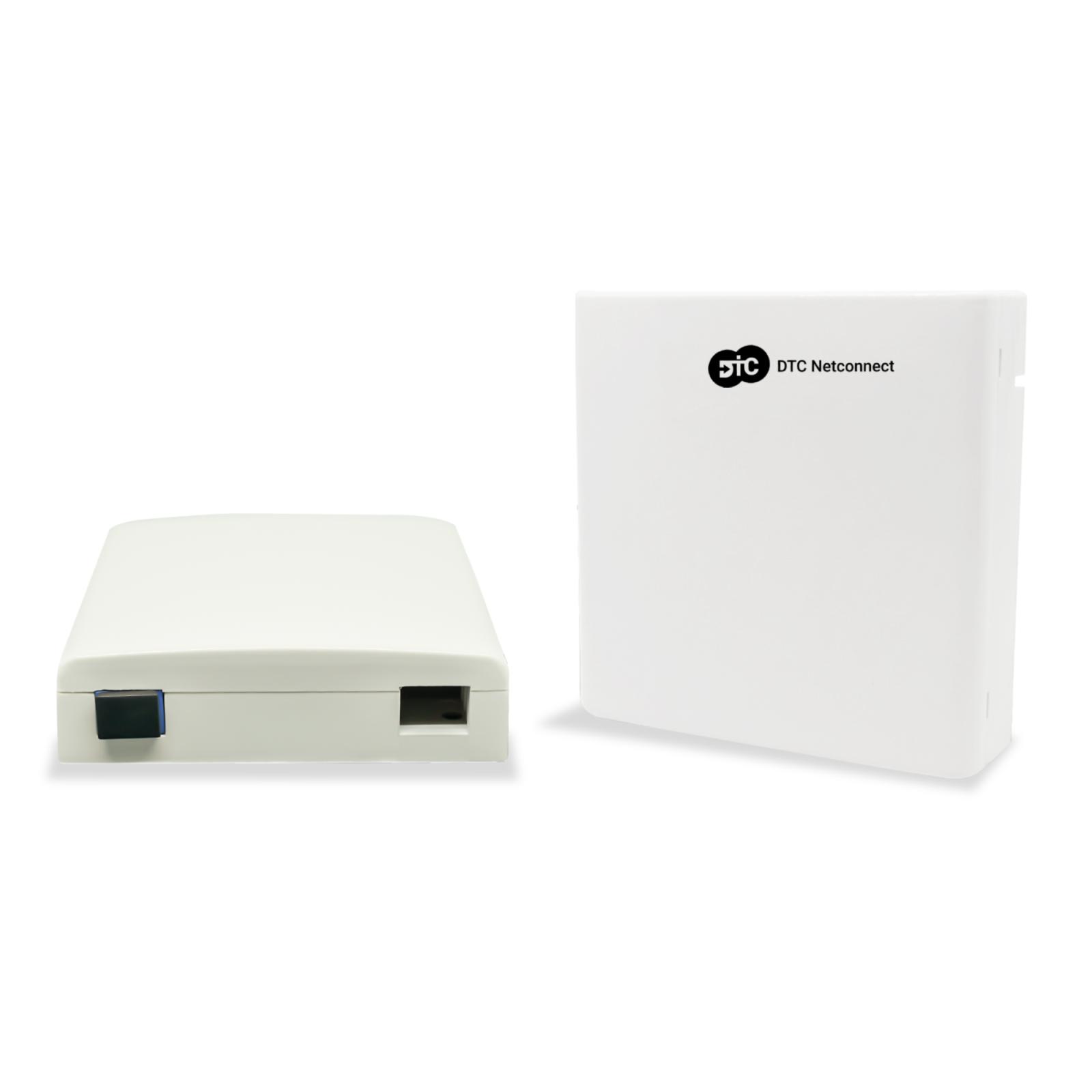

Fiber Termination Box (Fiber Roset)

Description

Usage cases for pigtail, mechanical connector, adaptor and faceplate house Option usage cases with field as sembly connector, adaptor and faceplate house Other option usage cases with pigtail, heat shinkable tube, adaptor and faceplate house

FTTH Mini Terminal Box.

Flame-retardant ABS.

Size - 90 x 85 x 16 mm.

Weight - 0.05 kg.

Capacity 1 -2 core.

Connector Type - SC & LC Connector

Sliding Type or Standart type

Min. bending radius for installation (Static )

10 x cable diameter

Min. bending radius for installation (Dynamic)

20 x cable diameter

Operating Temperature

(-40°C) - (+60°C)

Installation Temperature

(-10°C) - (+60°C)

Storage Temperature

(-40°C) - (+60°C)

Mode field diameter (1310nm)

8.6 µm ± 0.4 µm

Mode field diameter (1550nm)

9.6 µm ±0.5 µm

Cladding diameter

125 µm ±0.7 µm

Cladding non-circularity

≤1.0%

Cut off wavelength of cabled fibera

≤ 1260 nm

Attenuation at 1310nm

≤0.36 db/kma

Attenuation at 1550nma

≤0. 22 db/km

Bending loss at 1550 nm (1 turns, 10mm radius)

≤0.1 db

Bending loss at 1625 nm (1 turns, 10mm radius)

≤0.2 db

Dispersion in the range 1288 to 1339 nm

≤3.5 ps/nm.km

Dispersion at 1550 nma

≤ 18 ps/ nm.km
