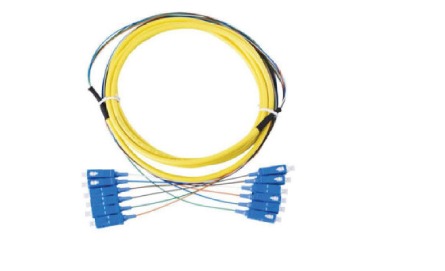

DTC Fiber Optic Patchcord Bundle Singlemode G.657.A2

DESCRIPTION

The outer sheath of the cable is LSZH material Use LC, SC, FC, and ST connectors (APC / UPC), Fiber capacity 6 - 24 core, Multi-fiber channel option, Length can be customized, Fiber outer diameter 2.0 or 3.0 mm, Fiber core diameter 0.9 mm.

IEC 60793-1

Optical fiber Part 1

IEC 60793-2

Optical fiber Part 2

EIA/TIA 598

Color code of fiber optic cables

ITU-T G.650

Definition and test methods for the relevant parameters of single-mode fibers

ITU-T G.652

Characteristics of a single-mode optical fiber cable

ITU-T G.657

Characteristics of a single-mode optical fiber cable

The optical fiber is made of high pure silica and germanium doped silica. UV-curable acrylate material is applied over fiber cladding as optical fiber primary protective coating. The detailed data on optical fiber performance are shown in the following table. ITU/T G.657.An optical fiber uses a special spun device to successfully control the value of PMD to ensure stability during cabling.
