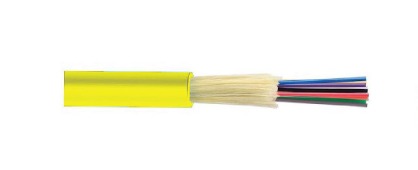

DTC Fiber Optic Cable Singlemode Indoor G.657.A2

Description

Cable possesses high tensile strength and flexibility in compact cable sizes. At the same time, it provides excellent optical transmission and physical performance.

Low weight, non-jelly, easy to install, and joint

Flame retardant LSZH / PVC Sheath

IEC 60793-1

Optical fiber Part 1 (Generic specifications)

IEC 60793-2

Optical fiber Part 2 (Product specifications)

IEC 60794-3-10

Outdoor cables- family specification for duct and directly buried optical telecommunication cable

EIA/TIA 598

Color code of fiber optic cables

ITU-T G.650

Definition and test methods for the relevant parameters of single-mode fibers

ITU-T G.652

Characteristics of a single-mode optical fiber cable

ITU-T G.651

Characteristics of a multi-mode optical fiber cable

The optical fiber is made of highly pure silica and germanium-doped silica. UV-curable acrylate materials are applied over fiber cladding as optical fiber primary protective coating. ITU/T G.657.A2 Optical fiber uses a special spun device to successfully control the value of PMd to ensure stability during cabling.
