DTC Cable S/FTP Category 8 22 AWG

DESCRIPTION

Rated temperature : 75°C
Reference standard : UL444, ANSI/TIA-568.2-D
Product certification : ISO/IEC 11801,IEC 61156-9
Conductor : Solid Bare Copperr
Colour-coded : Orange
Isulation : PE insulation
Jacket : PVC

Solid Bare Copper

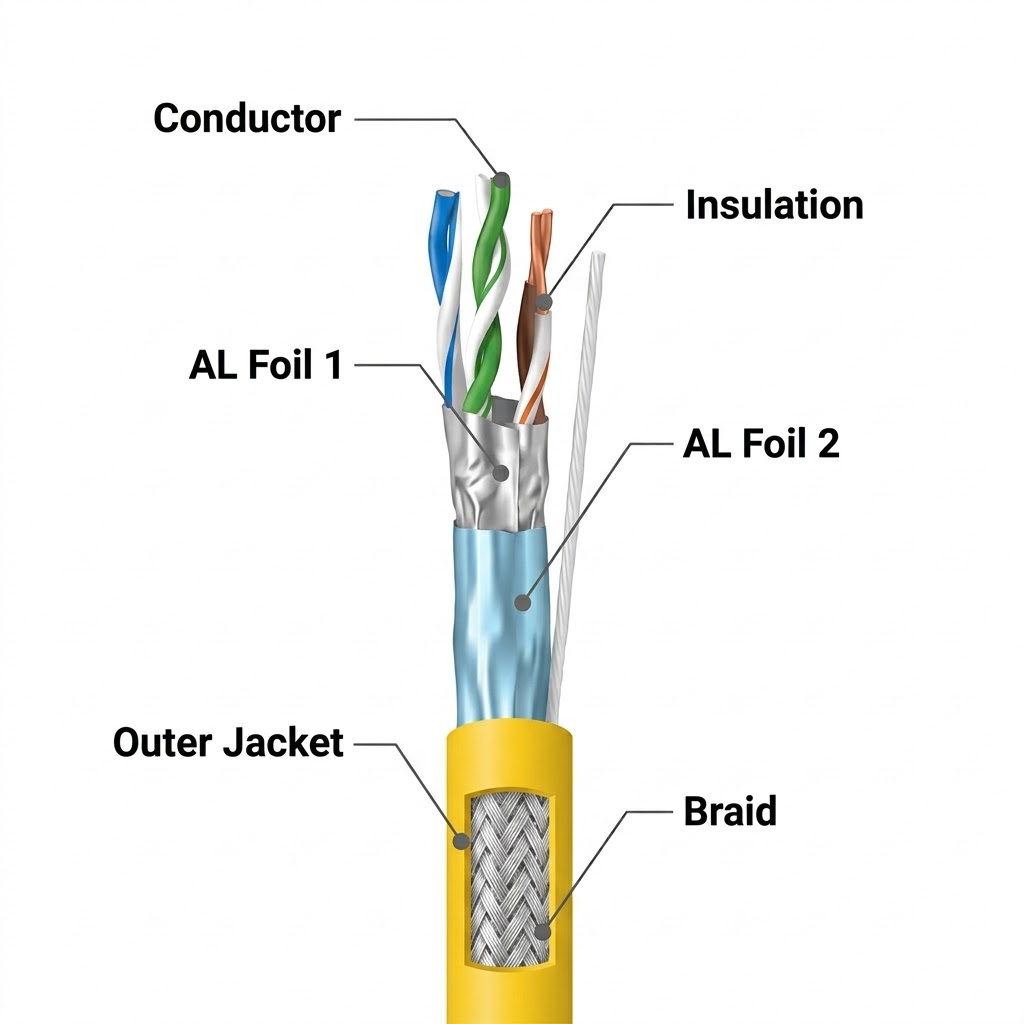

Construction

S/FTP

Number of Pairs

4 Pairs

Conductor Gauge ( AWG )

22 AWG

Conductor Material

Solid Bare Copper

Conductor dimension

0.63 ± 0.01mm

Isulation material

Skin Foam Skin PE

Isulation dimension

1.58 ± 0.5 mm

Number colour

White Blue / Blue, White Orange / Orange, White Green / Green, White Brown / Brown

Twisting lay length

≤ 30 mm

Cabling lay length

≤ 200 mm

Individual shield & material

AL-Foil

Primary overall shield & material

AL-Foil 2 (Al side face out)

Secondary overall shield & material

Tinned Copper Wire Braid

Shield coverage approx

40 %

Drain wire

Filler Material

Jacket Material

PVC

Overall nominal dimension

8.40 ± 0.30 mm

Jacket rip cord

100 Base-T4

100 Base-TX

100 VG-AnyLAN

1000 Base-T

1000 Base-TX

155 Mbps ATM

622 Mbps ATM

10 Gb Ethernet

25 GB Base-T

40 GB Base-T
