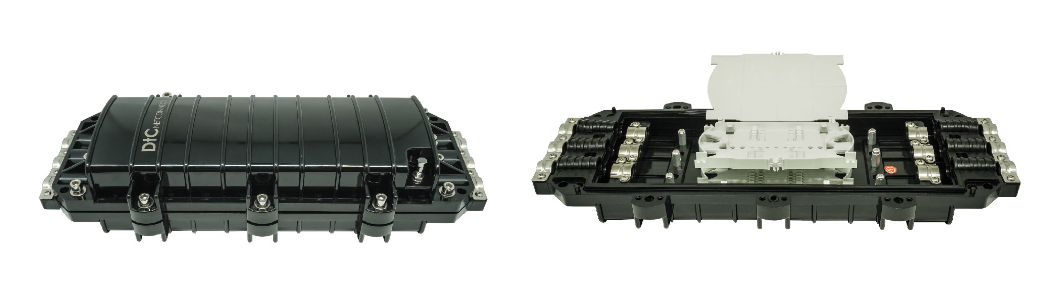

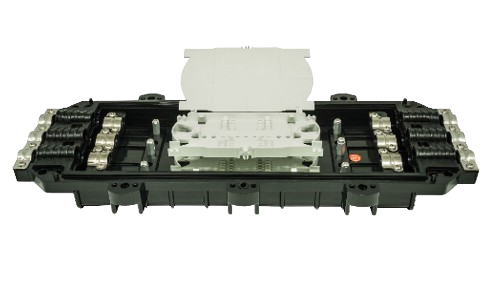

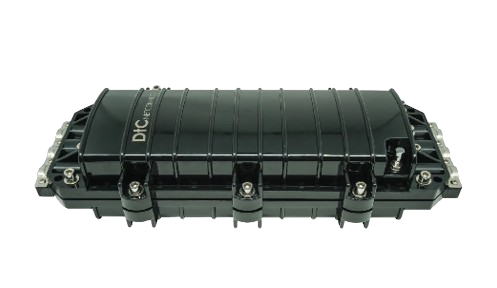

DTC Optical Joint Closure
DTC Optical Joint Closure
DTC Optical Joint Closure

DTC Optical Joint Closure


The product can be applied in the straight line and branch line (one into two, one into three) connections of optical cables within the diameter of 22mm(p), all types and structures, when laid overhead in the pipeline, underground, or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.
External Size (length x width x height)
435 x 190× 170 mm
Weight
4.3 kg
Optical fiber winding radius
≥ 40mm
Extra loss of fiber tray
≤0.01 dB
Fiber length left in the tray
1.6m
Fiber capacity
24-96 cores
Working temperature
(-40°C) to (+70°C)
Lateral pressure-resistance
≥ 2000 N/10 cm
