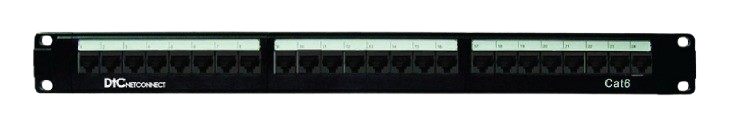

DTC Patch panel 24 Port Cat.6 Unshielded Loaded
DTC Patch panel 24 Port Cat.6 Unshielded Loaded
DTC Patch panel 24 Port Cat.6 Unshielded Loaded

DTC Patch panel 24 Port Cat.6 Unshielded Loaded

DESCRIPTION

Cat6 Patch panel which is fully equipped with 24 unshielded keystone jacks and designed as a jack, wiring-free style satisfies or even exceeds current Cat 6 standard, guarantees 250 MHZ broadband transmission, long-term reliability, and stability, suitable for connection between workspace and equipment room

  • Design to mount to any standard 19" rack or cabinet
  • 24 Port Cat.6 unshielded Patch panel
  • Space saving, high-density 1U
    • Black Electrostatic Powder-Coated Steel
    phosphor bronze with tin plating over nickel
  • Meet or exceed the requirement of ANSI / TIA / EIA 568B.2
  • Use keystone jacks and keystone inserts to configure your panel to accommodate a variety of schemes
  • Sturdy Aluminum Plate around RJ45 Jacks
  • Phosphor bronze with 6-50 micro inches gold plated
  • Available with T568A & T568B wiring pattern and meeting the requirement of Cat.6 standard
  • Color-coded TIA/ EIA 568A ( International ) and 568B ( AT&T Standard ) wiring for easy installation
  • Termination accepts 22, 24 & 26 AWG ( 0.64, 0.5 and 0.4 ) solid wires
    • Metal sheet
    Corrosion-resistant steel
    Plastic
    fire self-extinguish high-impact plastic
    Dielectric Strength
    1000 V RMS 60 MHZ / 1 min
    Rated Current
    maximum 1.5 A
    Insulation Resistance ( min )
    500 mega ohm
    Contact Resistance ( max )
    100 milli ohm
