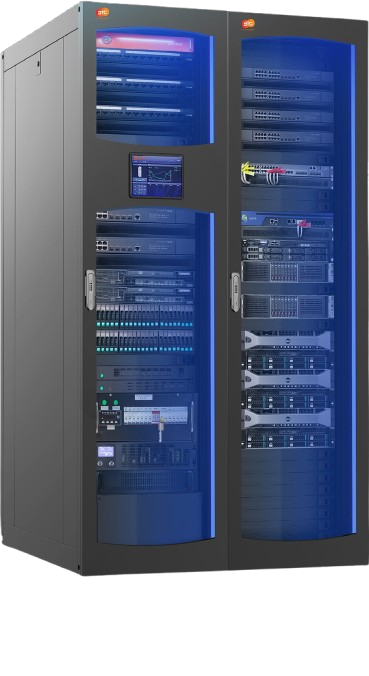

DTC Smart Rack Micro Data Center With Bisoft DCIM
DTC Smart Rack Micro Data Center With Bisoft DCIM

DTC Smart Rack Micro Data Center With Bisoft DCIM

DESCRIPTION

Smart Rack Cabinet Data Center is an integrated cabinet that contains a Cooling System, Power System, Monitoring System, Rack System, Etc. There are more and more Micro Data Centers, and it has been difficult to unite the planning, construction, and operation management. The integrated cabinet deeply integrates Data Center infrastructure products, including multiple Subsystems such as UPS, Power Distribution, Refrigeration, Cabinets, and Fire Protection, and implements overall management of the entire system through the Monitoring System.
Dimension
600 width x 1200 depth  x 2000 ( 42U ) height mm
Cooling Capacity
3 - 12 kW
Power Supply
3 kVA / 2.7 kW
Smart Power Distribution
Distribution of Mains Power and Power Supply in the Cabinet
Power Distribution Unit
Standart PDU 16 ports ( 2 Units)
Backup Time
Configure battery packs or lead-acid batteries and battery boxes
Environment Monitoring
Temperature, Smoke, Water Leakage
Infrastructure Monitoring
Power Supply, Refrigeration, Smart Power Distribution
IT Space
More Than 27U
Recommend Air Switch
63A / 1P
Recommend Cable Spec
3 x 10 mm2
  • Closed Cold Aisle
  • Cabinet Lighting
  • Emergency Fan
  • DCIM Monitoring
  • Loading Shelf
  • Bracket
  • Blank Panel
  • Vertical Cable Mangement
  • Finger Cable Management Slot (R8)
  • Background Lighting
  • Coded Lock
  • Automatic Pop-Up Door
