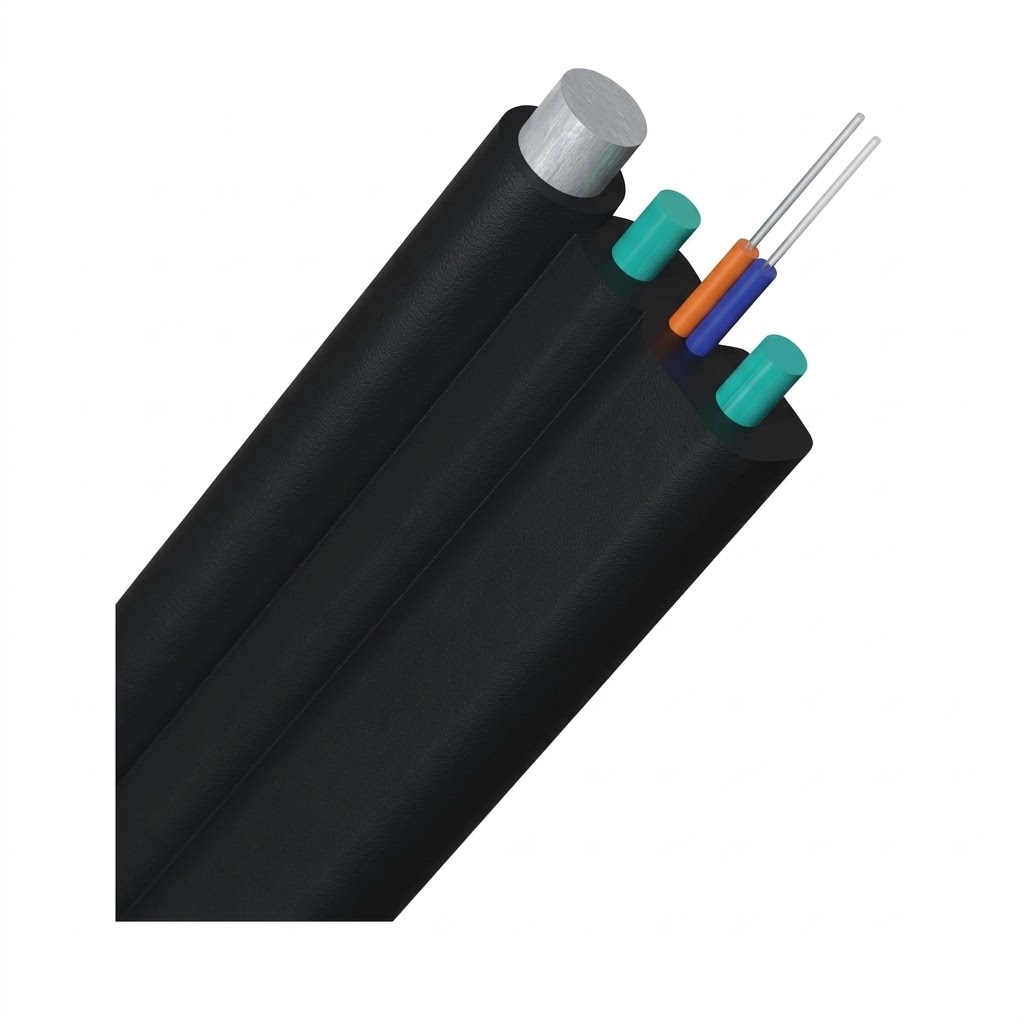

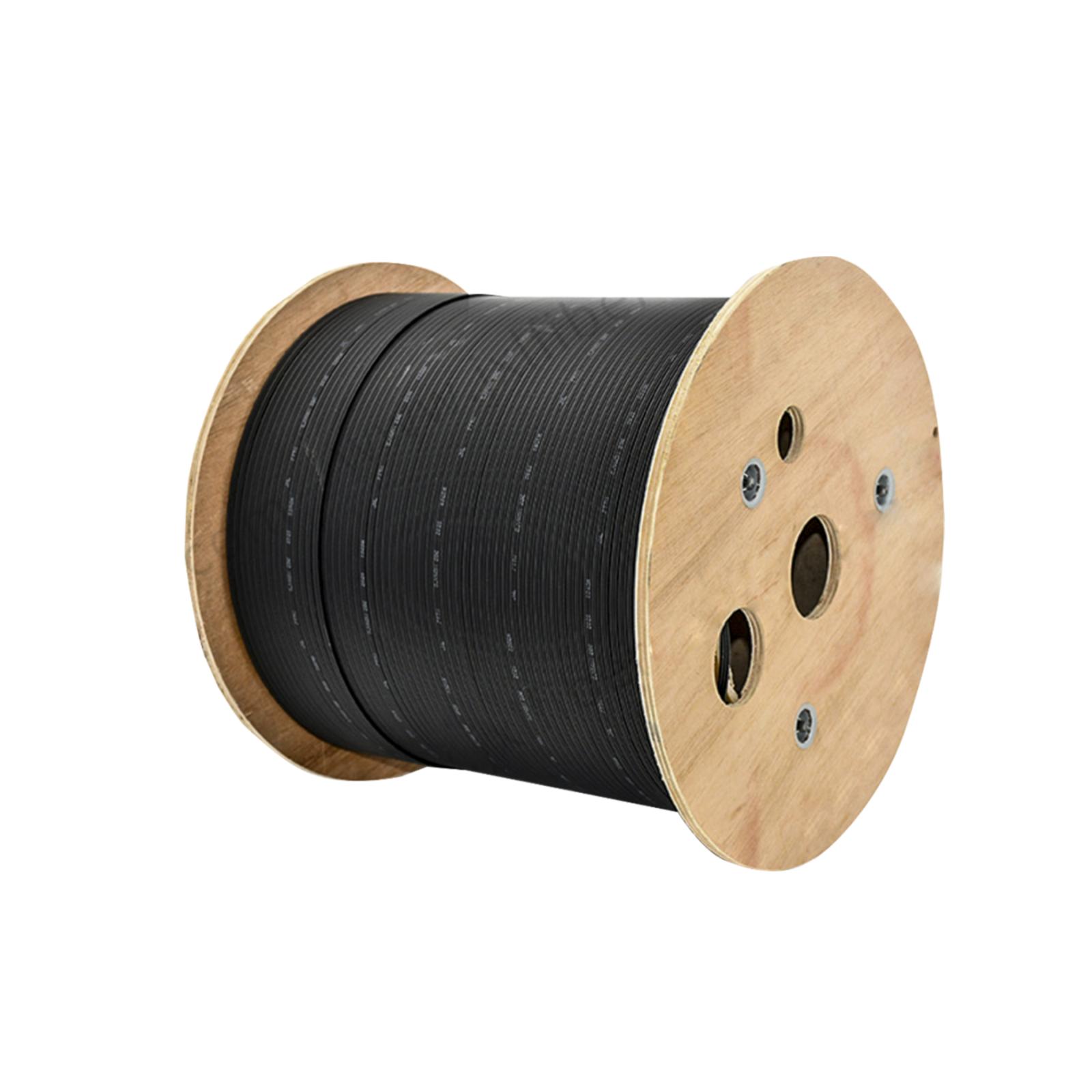

Drop Cable 2 Core G.657.A1 With Messenger
Joining between indoor and outdoor optical fiber cable and residential building, connecting with the equipment. Small structure size, lightweight, available for cabling in the plot. Figure 8 structure, unique concave groove design for excellent peeling property
Application
Drop
Environment
Indoor & Outdoor
Fiber Count
2 Core
Fiber Core
Singlemode G.657.A1
Jacket
LSZH
Messenger
Un-Glue Steel
Min. bending radius for installation (Static)
10 x cable diameter
Min. bending radius for installation (Dynamic)
20 x cable diameter
Operating Temperature
(-40°C) - (+60°C)
Installation Temperature
(-10°C) - (+60°C)
Storage Temperature
(-40°C) - (+60°C)
Mode field diameter (1310nm)
8.6 µm ± 0.4 µm
Mode field diameter (1550nm)
9.6 µm ± 0.5 um
Cladding diameter
125 um ± 0.7 um
Cladding non-circularity
≤1.0%
The cut-off wavelength of cabled fiber
≤1260 nm
Attenuation at 1310nm
≤ 0.36 dB/ km
Attenuation at 1550nma
≤0. 22 db/km
Bending loss at 1550 nm (1 turn, 10mm radius)
≤0.1 db
Bending loss at 1625 nm (1 turn, 10mm radius)
≤0.2 db
Dispersion in the range 1288 to 1339 nm
≤ 3.5 ps/nm.km
Dispersion at 1550 nma
≤ 18 ps/nm.km
