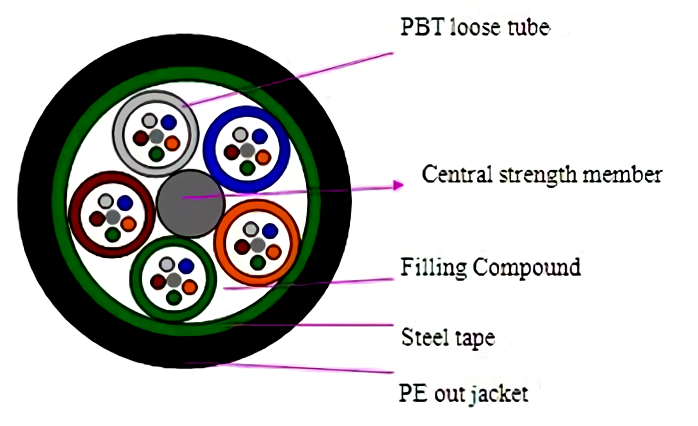

DTC Fiber Optic Cable Singlemode ( G.652.D ) Single Jacket Outdoor

Description

Cable possesses high tensile strength and flexibility in compact cable sizes. At the same time, it provides excellent optical transmission and physical performance.

Fiber count

4 core - 96 core

Max. Number of fiber per tube

4 ( 4 core & 8 core ), 6 ( 6 core & 24 core ), 12 ( 48 core & 96 core )

Cable Outer Diameter

10.8 mm ( 4 core - 24 core ), 4 ), 11.8 mm ( 48 core ), 13.8 ( 96 core )

Operation temperature range

-40˚C to +70˚C

Installation temperature range

-10˚C to +60˚C

Storage temperature

-40˚C to +70˚C

IEC 60793-1

Optical fiber Part 1

IEC 60793-2

Optical fiber Part 2

IEC 60794-3-10

Outdoor cables - family specification for duct and directly buried optical telecommunication cable

EIA/TIA 598

Color code of fiber optic cables

ITU-T G.650

Definition and test methods for the relevant parameters of single-mode fibers

ITU-T G.652

Characteristics of a single-mode optical fiber cable

ITU-T G.651

Characteristics of a multi-mode optical fiber cable

The optical fiber is made of highly pure silica and germanium-doped silica. UV-curable acrylate materials are applied over fiber cladding as optical fiber primary protective coating. ITU/T G.652 Optical fiber uses a special spun device to successfully control the value of PMd to ensure stability during cabling.
