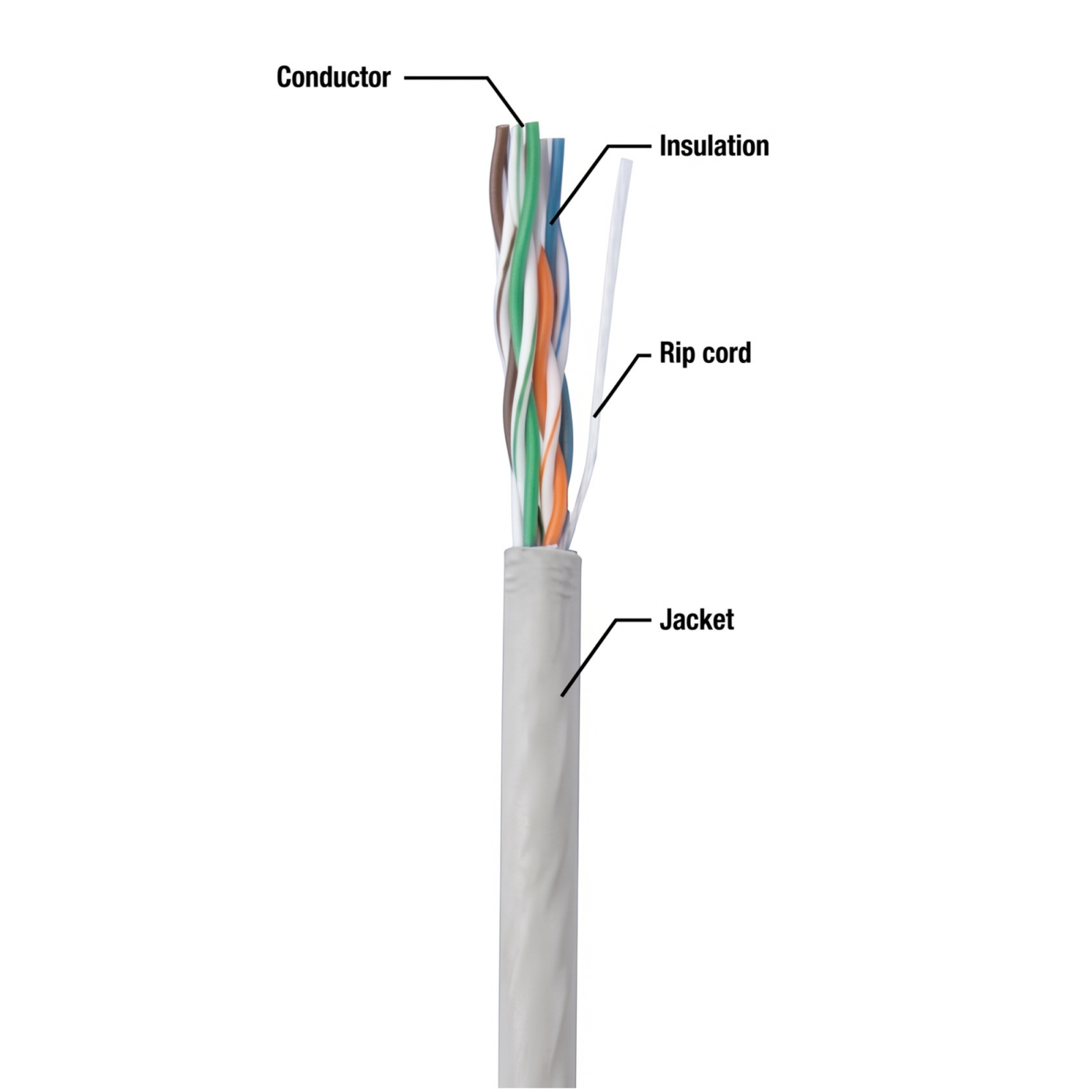

DTC Cable U/UTP Category 5E White 24 AWG

DESCRIPTION

Rated temperature : 75°C
Reference standard : UL444, ANSI/TIA-568.2-C
Product certification : ISO/IEC 11801,IEC 61156-5
Conductor : Solid Bare Copper
Colour-coded : White
Isulation : PE insulation
Jacket : PVC

Construction

U/UTP

Number of Pairs

4 Pairs

Conductor Gauge ( AWG )

24 AWG

Conductor Material

Solid Bare Copper

Conductor dimension

0.495 ± 0.005mm

Isulation material

HDPE

Isulation dimension

0.87 ± 0.5mm

Number colour

White Blue / Blue, White Orange / Orange, White Green / Green, White Brown / Brown

Twisting lay length

≤ 30 mm

Cabling lay length

≤ 200 mm

Individual shield & materia

Primary overall shield & material

Secondary overall shield & material

Shield coverage approx

Drain wire

Filler Material

Jacket Material

PVC

Overall nominal dimension

5.90 ± 0.30 mm

Jacket rip cord

Yes

100 Base-T4

100 Base-TX

100 VG-AnyLAN

1000 Base-T

1000 Base-TX

155 Mbps ATM

622 Mbps ATM
