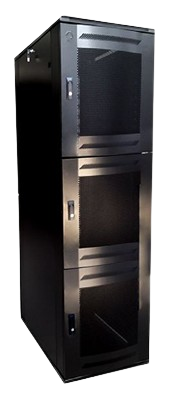

DTC Standard Colocation 3 Compartments Cabinet 24 Inch

STANDARDIZATION

Comply with ANSI/EIARS-310-D, DIN41491; PARTI, IEC 297-2, DIN41494; PART7, GB/T3047.2-92 standard

Static Loading 1600 KG

Consist of 3 Compartment

Single Perforated front door 80% & Perforated rear door 80%

IP Protection IP20

Mounting Post 2.0 mm with U Marking

Unique key for each door (Front, Rear & Side) Single side panel with key and slide lock

Include Cage nut & Screw Removeable Top and Bottom Panel

Castor 4 unit & Jacking Feet 4 unit

Include PDU 6 Port 16 Ampere C13 Each compartment 3 unit

Include vertical cable management for each compartment

Black Color RAL 9005 with Powder Coating

Dimension (450 x 600 Width x 1200 mm)

Fiber Optic Patchcord DTC Fiber Optic Patchcord Multimode OM3

Twisted Pair Patchcord DTC Patchcord UTP CAT 5E

Fiber Optic Patchcord DTC Fiber Optic Patchcord Bundle Singlemode G.657.A2

Fiber Optic Cable Drop Cable 1 Core G.657.A2 With Messenger

Fiber Optic Accessories Fiber Termination Box (Fiber Roset)

Containtment System Data Center DTC Cold Aisle Containment System with Bisoft DCIM

Cabinet Accessories DTC Fix Vented Shelf

Twisted Pair Cable DTC Cable S/FTP Category 8 22 AWG
